Step 1
Locate the position of the image I behind the mirror.
Distance of mirror image behind mirror = distance of object in front of mirror
- draw a dashed line at to the mirror, extending beyond the expected position of the image.
- Measure and use it to locate the position of image I.

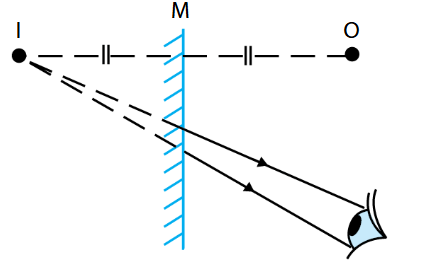

Step 2
- Draw lines to join I to the eye.
- use dashed lines behind the mirror and solid lines for rays reflected into the eye
- Insert arrowheads to indicate the direction at which light travels

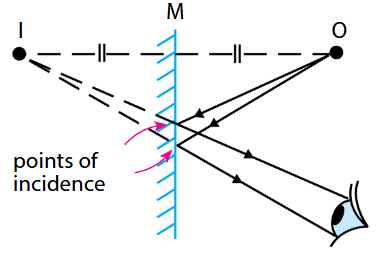

Step 3
- Draw solid lines from object O to the points of incidence on the mirror
- These are the incident rays
- Insert arrowheads to indicate the direction at which the light travels
Note
These steps ensure that the angle of incidence = angle of reflection (for an extended object, repeat the same steps for key object points)
